Laboratory

The laboratory of Ingenieurbuero Erckert is optimized for bench ealuation of analog and mixed circuit chips. Most of the equipment is connected to the LAN to control the measurements using computers. We are currently not able to run production testing.

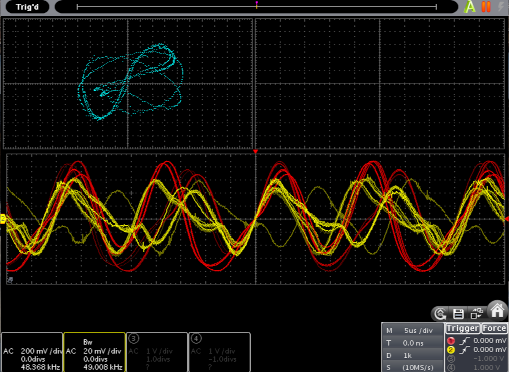

figure 1: measurement of a "chaotic oscillator"

By the way, an interresting measurement. Creating real chaotic systems is very tricky and can be very useful to create random numbers. But the "chaotic multi furcal oscillator" was far less chaotic in measurements than in (the really promising) simulation. Sometimes truncation errors in the simulation can really fool the designer!


domain resolution range equipment
power supplies 1mA, 10mV 0..300V, 0..10A only partly LAN controlled, multiple supplies
parameter analyzer 1pA, 1mV 0..100V, 0..100mA LAN controlled HP4145
time domain 125ps 0..350MHz LAN controlled MSO5354 and USB scopes
frequency domain 100Hz 0..6.2GHz only partly LAN controlled, multiple spectrum analyzers
generators N/A 0..250MHz only partly LAN controlled, multiple sine and pulse generators
Multimeters 1mV 1000V manual control


(Last update Aug. 20 2025)
